437CX

CONSTRUCTION
• Unsinkable
· Lifetime hull warranty and 3-year component warranty
· Variable deadrise deep V-hull
· Patented closed molded RAMCAP® construction process with high density, closed cell, structural foam flotation
· NMMA Yacht Certified
· Self-bailing cockpit
· No wood construction
· Hull laminate – premium gel coat, vinyl-ester barrier and knitted bi-axial fiberglass
· High density composite transom
· Hull liner and deck mated perfectly for a rigid one-piece construction, adding to its long-term
durability
· Hull liner finished inside
· Molded-in diamond non-skid
· Rigging troughs – molded-in and oversized for easy access
· ABS backing used to receive self-tapping screws and bolts
· Aluminum framework – custom fabricated meeting stringent standards, sand blasted then powder coated using premium marine grade materials
· Gunwale boards – hand laid and extra heavy duty
· Wire harnesses – manufactured in-house using marine grade, tinned copper wire, high grade heat shrink connectors and waterproof deutsch plugs
· Torque spec tightening on all terminals
· Circuit protection – circuit breakers or fuses protect all electrical circuits
· Heavy-duty rub rail with 316 stainless steel insert and end caps
· 316 Cast stainless steel and chrome plated fasteners for additional corrosion and stain resistance
· All hardware bedded or gasketed to resist corrosion
· Upholstery – extra heavy vinyl with acrylic topcoat, Tenara thread, and anti-mildew backing –
adhered to high density plastic backing (no wood) with flow through foam cushions
· Bonding zinc plate
· Heavy duty tow eye with strobe light and audible bilge alarm
· Bronze high speed intake strainers

CABIN
· U shaped seating with adjustable backrests
· Filler cushion to create queen sized berth
· Mid stateroom with queen sized berth, cabinetry and storage
· Lockable cabin entry door with stainless steel hardware and window for natual lighting
· Storage and mechanical access behind seating
· 32” Flat Screen TV
· Digitial switching control (TD50)
· Dedicated RA210 stereo head and JL-Luxe speakers (2)
· Microwave
· LED lighting
· Wood grained entry stairs with handrail and storage
· Cup holders (2)
· Carbon monoxide detector
· Smoke detector
· Finished flooring with additional sub-floor storage
· Dedicated MDP panel and digital switching accesses

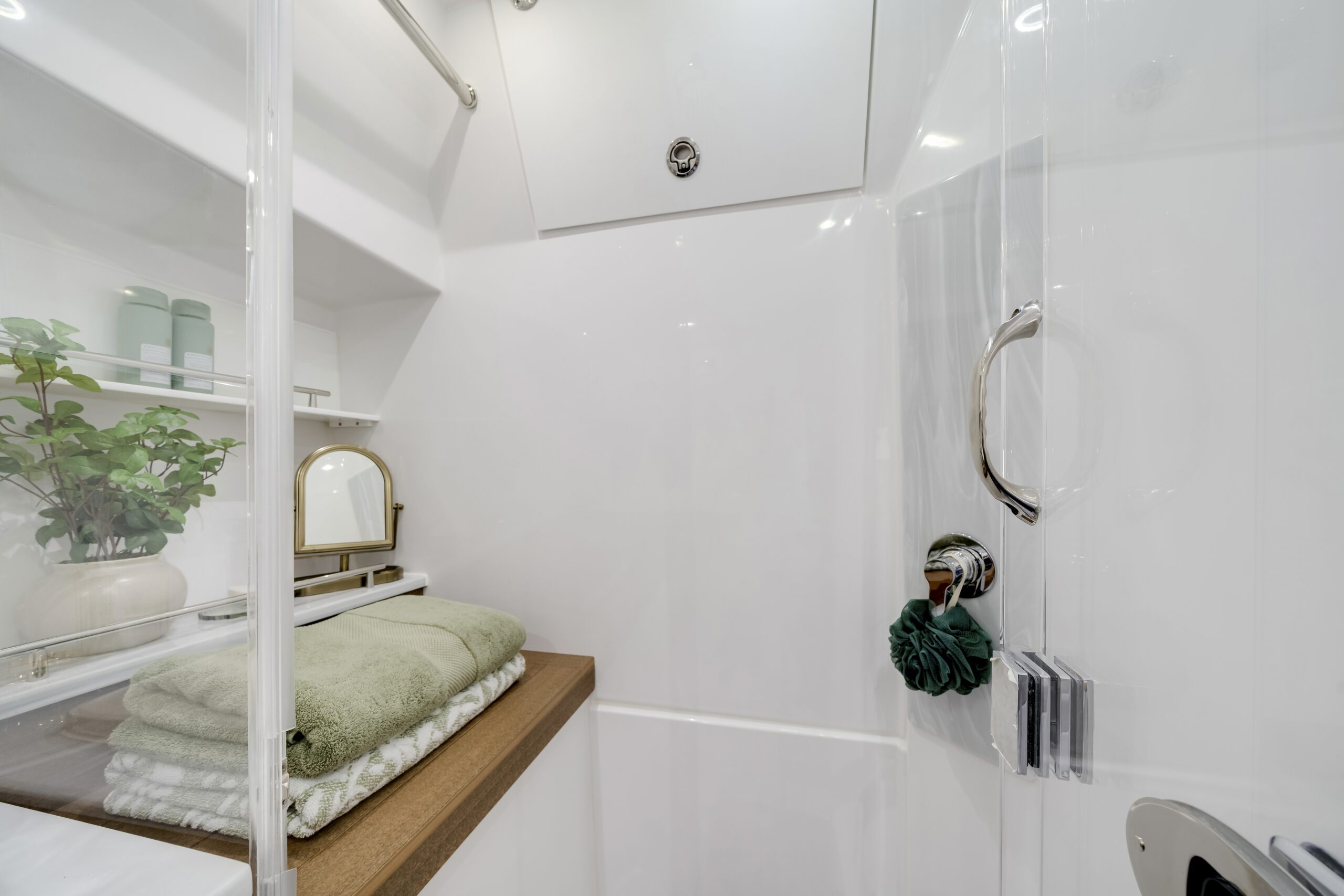

ENCLOSED HEAD
· Lockable head
· Ventilation fan
· Overhead rain shower enclosed by clear acrylic folding door
· Head with macerator and 50 gallon holding tank
· LED lighting
· Solid surface countertop with vessel sink and storage
· Upper vanity mirror and full-length mirror
· Storage hooks
· Hanging storage for clothes
· Cup holders (2)
· Shower seat with tiered shower storage
· GFI outlet

CONSOLE/HARDTOP
· Digital Switching with dedicated 15” touch screen control
· Stainless steel drink holders (4)
· Recessed storage area on dash top with inductive cell phone chargers (2)
· Accent panels with decorative lighting
· Stainless steel steering wheel with adjustable base
· Integrated hardtop & windshield frame
· Windshield with tempered glass & opening door
· Wiper and wash system
· Hardtop hatches (2)
· Footrest at helm
· Fold down footrest for additional helm height
· Helm tilt out bin and storage drawers
· Fiberglass hardtop with overhead LED lights (15), aft deck lights (2), and speakers (4)
· Light Bar
· Electrically actuated anchor light
· Overhead storage port and starboard
· Hinged electronics access

DECK & COCKPIT
· Anchor locker with fixed cleat, anchor lanyard, and raw & freshwater washdown connects
· Electric windlass, dedicated tool storage, integrated through the stem anchor chute, stainless steel plow anchor with 575ft 5/8- 8PLAIT & 25ft 3/8 chain with swivel, operable from bow or helm
· Bow seating with cushions, cup holders (6), and handrails
· Bow cooler with solid surface countertop
· Bow digital switching with zone audio control
· Oversized storage box under bow seating
· Recessed under gunnel storage boxes, with dedicated fender storage and line storage hooks
· Quad helm seats with armrests, folding bolsters, and seat slides
· Galley with countertop, grill, sink, cutting board, cupholders (4), 110/12V refrigerator, trash can, storage,
insulated cooler box, and weatherproof GFI outlet
· Elevated L-shaped dinette and mezzanine with “multi-position” sliding backrest and access to 12V fuse panel
· Electrically actuated dinnette table
· Storage beneath dinnette seatin
· Insulated mezzanine cooler box and mezzanine footrest
· Lifestyle cockpit seating with armrests, cupholders (2), handrails (2), insulated coolers (2)
· Dual hydraulically operated fold out cockpit balconies
· Ladder for deployed cockpit balcony, stainless steel removable with storage
· Transom boarding with telescoping ladder (1)
· Stainless steel quick release fender pins (8)
· Dual Side utility doors with oversized stainless-steel hardware
· Large removable stainless steel swim platform hoop rail (1) with dedicated storage
· Bilge access hatch with drainage and ladder
· 10” pop-up cleats cast 316 stainless steel & through bolted (6), and fixed aft cleats on swim platforms (2)
· Coaming bolsters around perimeter of deck
· Stainless steel gasoline fittings port & stbd
· Low profile aluminum powder-coated handrails (4)
· Dual in deck fish boxes (56 gals) with macerator pumps and overboard discharge
· Flush mounted stainless steel rod holders (4) bedded & through bolted
· Flush mounted stainless steel combination rod-cupholders (2) bedded & through bolted
· Transom shower (hot and cold)
· Audio package – RA800 Fusion control head unit with Bluetooth & JL M6-series speakers (6), includes JL amplifiers (2) & subwoofers (3), and two wireless audio remotes at bow and galley

MECHANICAL & ELECTRICAL SYSTEMS
· Generator – Fischer Panda 15kw Diesel – 50 gallons
· Zipwake Pro Trim Tabs with automatic trim control
· High-capacity bilge pumps (3), two aft and one forward
· High-water alarms forward and aft
· Refrigerated storage boxes, mezzanine and galley cooler box (wrapped boxes not freezer plates)
· Sump for gray water system
· Dry bilge system fwd and aft
· Electrically actuated valves on thru hulls for waste system and generator
· LED anchor light
· LED navigation lights
· Full color spectrum LED hardtop & deck courtesy lighting
· LED Underwater Lights, Spectrum Sea Blaze, RGBW (3)
· Compass
· Electric horn
· Dedicated engine starting battery bank with charging system
· Dedicated house battery bank with charging system
· Fresh and saltwater wash down connections
· 50A shore power cord with retractable storage compartment
· Seakeeper ready
· Air conditioning for cabin interior & helm area
· Freshwater city inlet with regulator

Engine Packages & Controls
· Yamaha Triple 450HP (White) with Digital Electric Steering, Autopilot & Joystick for Yamaha Helm Master EX
· Mercury Twin V12 600HP (Cold Fusion White) with Digital Electric Steering, Autopilot & joystick
· Mercury Triple V12 600HP (Cold Fusion White) with Digital Electric Steering, Autopilot & joystick

Gelcoat & Paint
· Hull Side Gel Color – Whisper Green, Ice Blue, Whisper Gray
· Hull Bottom Gel Color
· Painted waterline boot stripe on hull side
· Black gel coat on hull bottom
· Painted hull sides nonmetallic
· Painted hull sides metallic
· Custom Painted Engines
· Mohawk Cowling Accent Triple Engine (Yamaha Only)

Upholstery & Canvas
· Interior Material Package – Newport, Sanibel, Biscayne (determines upholstery colors, accents,
flooring, and cabinet materials)
· Exterior Material Package – Newport, Sanibel, Biscayne (determines exterior upholstery colors and
accents)
· Canvas package – Helm dash cover, helm seat cover, mezzanine seat cover, transom seat cover, & bow seating enclosure
· Canvas – House side window enclosure (only available with half-side glass windshield option)
· Canvas – Windshield privacy cover (only available with full side glass windshield option)
· Canvas – Aft curtain enclosure
· Mediterranean bow shade
· Retractable cockpit shade, hardtop mounted, electrically actuated (if selected in combination with either fishing package, the full rod rack will be removed and replaced with rod antlers (6))

Miscellaneous Options
· Full side windshield glass with electrically actuated sliding windows
· Prime fishing package- live well with window (17 gal), rod holders across the transom (6), full hardtop mounted rod rack (10 r.h.), and additional tackle storage
· Premium fishing package – (replaces lifestyle cockpit seating module) (Prime Fishing Package not availabe with this options) Aft cockpit fishing module with fish box (48 gal), live well (25 gal),
removeable cutting board, rod holders (6), rod/cup holders (4), additional tackle storage, fold out stainless-steel aft cockpit seat with articulating backrest, and hardtop mounted rod rack (10 rod
holders)
· Additional tackle storage (included with Prime and Premium Fishing Package)
· Outrigger Package – Gemlux 22 ft collapsible carbon fiber outrigger with stainless steel adjustable hardtop mounts, double rigging kit and quick cam cleats
· Bow Thruster (SEP80, proportional and integrated with engine joystick)
· Seakeeper 4.5 gyroscopic stabilizer
· Seakeeper Ride Trim Tabs (replaces standard Zip wake trim tabs)
· Hardtop mounted, electrically actuated outdoor rated TV (retracts into hardtop)
· Skylight (Sunroof) in harftop, electrically actuated opening
· Carbon Fiber Steering Wheel Upgrade
· Upholstered Steering Wheel Upgrade
· Auto engine flush
· Cockpit flooring – Synthetic teak
· Cockpit flooring – ReFlex
· Filler cushion for dinette or bow table (removable)
· Transom anchor with rigging and storage (fortress)
· Twin electric reel power ports (30A)
· Light bar upgrade – additional flood light bars (2)
· Helm seating upgrade – Four Release Marine Teak Ladder Back Seats
· Table, high gloss teak, removable with storage, mounts at bow or interior
· Upgrade dinette table to high gloss teak (fiberglass standard)
· Teak Accent Option – Teak Helm Dash Upgrade
· Teak Accent Option – Galley Accents Upgrade
· Teak Accent Option – Lower Aft Seat Accent Upgrade (Not available with premium fishing package)
· Teak Accent Option – Teak Aft Seat Armrest Upgrade, Port/Stbd (Not available with premium fishing package)
· Winterization option

ELECTRONICS
· Prime Package – VHF 315, Dual Display GPSMAP 9219 Chart Plotters, B75M Transducer, GSD 25
Premium Sonar Module
· Elite Package – VHF 315, AIS 800, Triple Display GPSMAP 9219 Chart Plotters, B175M Transducer,
Fantom 24 Radome, GSD 25 Premium Sonar Module
· Premium Package – VHF 315, AIS 800, Triple Display GPSMAP 9222 Chart Plotters, B175H Transducer, B175LTransducer, Radar Fantom 54, GSD 25 Premium Sonar Module
· GXM 54 SiriusXM marine weather receiver & audio (requires subscription)
· Starlink pre-rig

Engine: 3 X 450HP YAMAHA
Props: 16-5/8″ X 19″ YAMAHA XTO OS 3 BLADE
Fuel Capacity: 650 gal

Note: Speed was calculated using GPS with 320 gallons of fuel, 20 gallons of water, 25 gallons of
diesel, Seakeeper SK4.5, generator and 1000 lbs of people & gear aboard. The tested boat weight
was 30,330 pounds. The data was collected on 5-4-26. Fuel flow was taken from engine displays. All
values were averaged in two directions. Range is calculated off of 95% fuel capacity and is shown in
statute miles. Performance results can be affected by many factors including vessel loading and
weather conditions. The reported performance, acceleration and fuel burn are not guaranteed.
